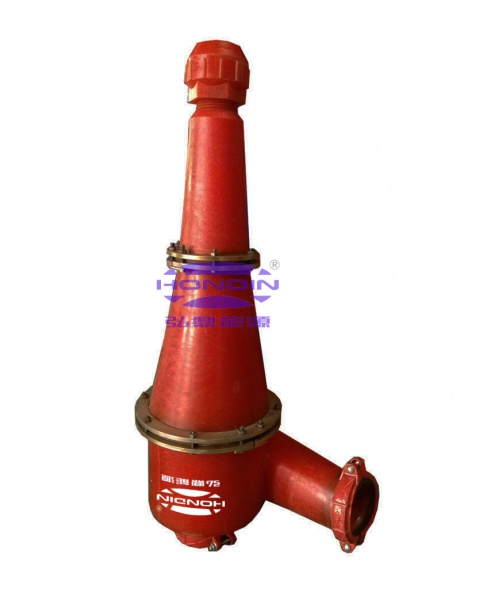

Model	Inner diameter of cylinder（mm）	overflow pipe diameter（mm）	Bottom flow orifice diameter（mm）	Maximum allowable feed particle size（mm）	Feeding pressure （Mpa）	Processing capacity （m³/h）	Grading Particle Size （μm）	（External dimensions）			Weight（kg）
								Length（mm）	width （mm）	height （mm）
FX710	710	20	175-270	80-165	16	550	350-450	74-250	1255	1185	1150
FX660	660	45	165-250	80-155	16	350	250-350	74-220	1140	1000	524
FX610	610	45	155-230	75-140	13	260	200-300	74-220	875	950	850
FX500	500	20	125-185	55-115	10	220	140-220	74-200	850	700	230
		15						74-150	850	700	260
		45					140-220	74-150	850	825	270
FX350	350	20	80-120	30-70	6	85	60-100	50-150	775	620	120
		15						50-120	775	620	144
FX300	330	20	65-115	20-50	5	60	45-85	50-150	498	485	108
		15						40-100	498	485	234
FX250	250	20	60-100	16-45	3	50	40-60	40-100	410	380
		15						40-100	410	380	72
		10						30-100	410	380	85
FX200	200	20	40-65	16-32	2	30	25-40	40-100	365	330
		15						30-100	410	330	60
		10						30-100	400	365	74
FX150	150	20	30-45	8-22	1.5	15	11-20	30-74	310	265	20
		15						30-74	310	265	28
		10						30-74	310	265	40
FX125	125	17	25-40	8-18	1	9	8-15	20-100	260	218	11
		8						20-74	260	218	15
FX100	100	20	20-40	8-18	1	6.5	5-15	20-100	260	210	53
		15				6.5		20-100	268	215	16
		8				12		20-100	365	150	13
		5				12		20-100	365	150	4.5
FX75	75	15	15-22	3-8	0.6	2.5	2-5	20-74	160	230	2.5
		5						5-40	160	230	4
FX50	50	15	11-16	6-12	0.3	1	1-2	10-74	240	137	2.8
		5							240	137

II. Working principle of sludge hydrocyclone:

A desliming hydrocyclone relies on centrifugal sedimentation for separation. The two- or three-phase mixture to be separated is fed into the hydrocyclone at a certain pressure through the inlet around the perimeter of the column, generating intense three-dimensional elliptical rotational shear turbulence. Due to the size difference (or density difference) between coarse particles (or heavy phase) and fine particles (or light phase), they experience different magnitudes of centrifugal force, centripetal buoyancy, and fluid drag, resulting in centrifugal sedimentation. Most of the coarse particles (or heavy phase) are discharged through the underflow outlet of the hydrocyclone, while most of the fine particles (or light phase) are discharged through the overflow pipe, thus achieving the purpose of separation and classification.
